Sargent Electrical Intelligent Leisure Battery Charger.

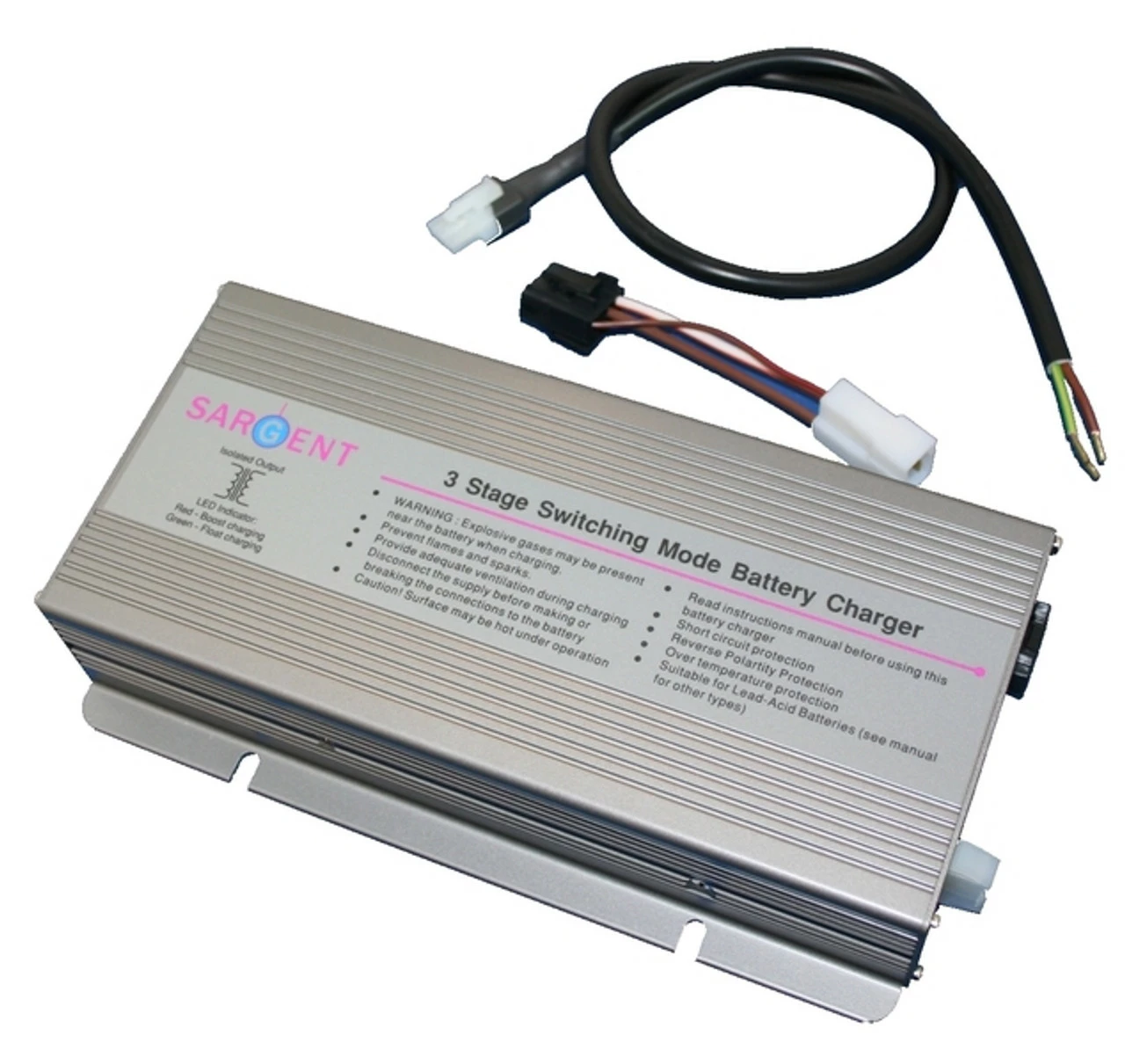

The PX300 is a 300W 3 stage intelligent leisure battery charger and power supply.

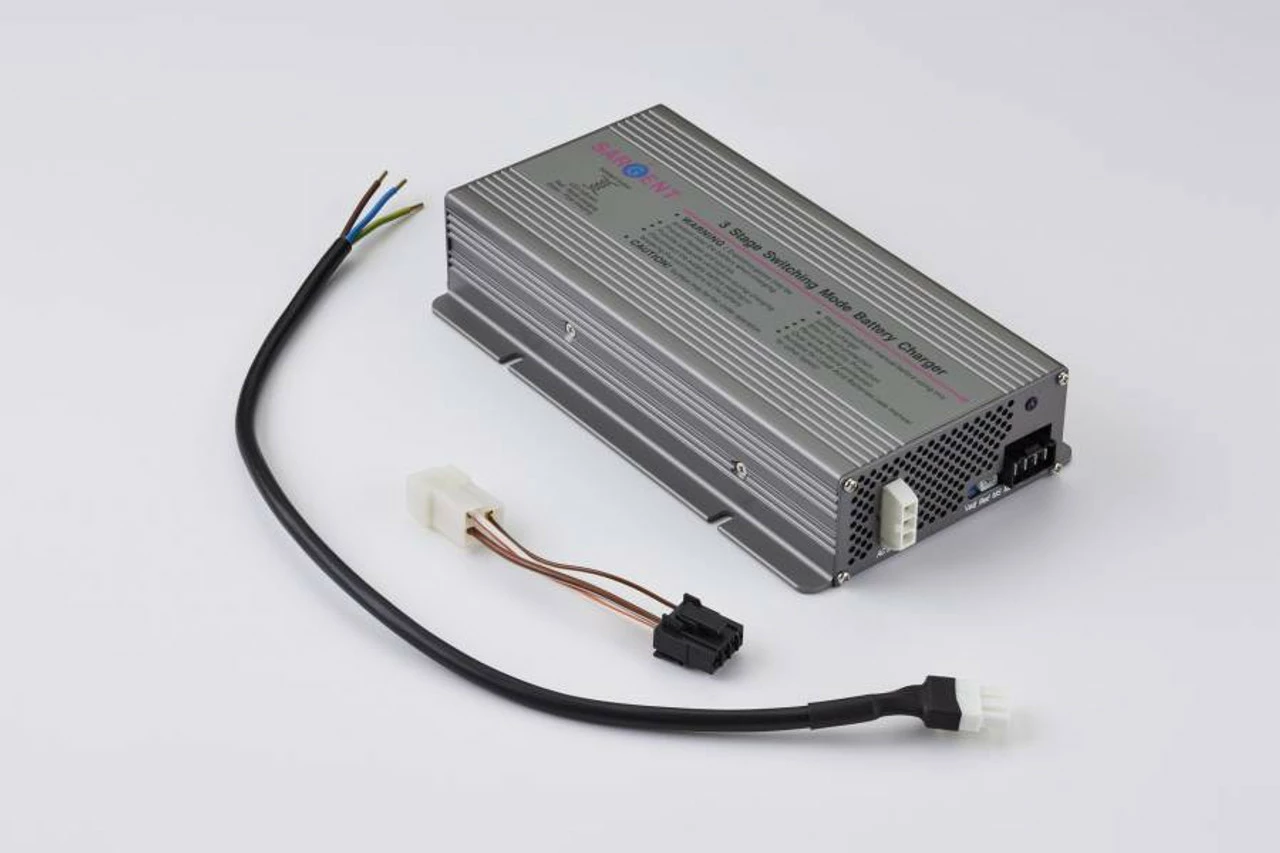

This air cooled unit is ideal as a replacement for many makes and models of charger, and is also suitable for new installations.  It comes with a short adaptor cable which matches the 12V connector on many ‘Nordelettronica’ charger units. This cable can also be used with 6.3mm female spade terminals.  A short 230V mains cable is also supplied, for connection to a 5A fused 230V supply.

The Sargent Leisure battery charger user manual provides further information

Compatability and Use.

This leisure battery charger is configured to work with standard lead acid leisure batteries, and in most cases is also compatible with the latest range of AGM (Absorbed Glass Mat) batteries.

Recommended battery capacity: 85 to 220Ah.
This Sargent battery charger can be safely left switched on as required.

Technical Specifications:

Input Voltage:

230V AC 50Hz 3A

Output Voltage:

13.6 to 14.4V DC 300 Watts

Dimensions:

240 x 135 x 48mm (excluding connectors)

Weight:

1.18 Kg
