PV Logic 80w Motorhome Solar Panel Kit with 8Ah Controller

Delivering maximum power in the smallest module size, the PV Logic 80w Solar Panel Kit is robust and dynamic as well as being weight and space efficient.

Suitable for powering an assortment of consumption devices as well as being water resistant and suitable for outdoor use, the PV Logic 80w Kit features a high efficiency crystalline cell for reliable charging throughout the year.

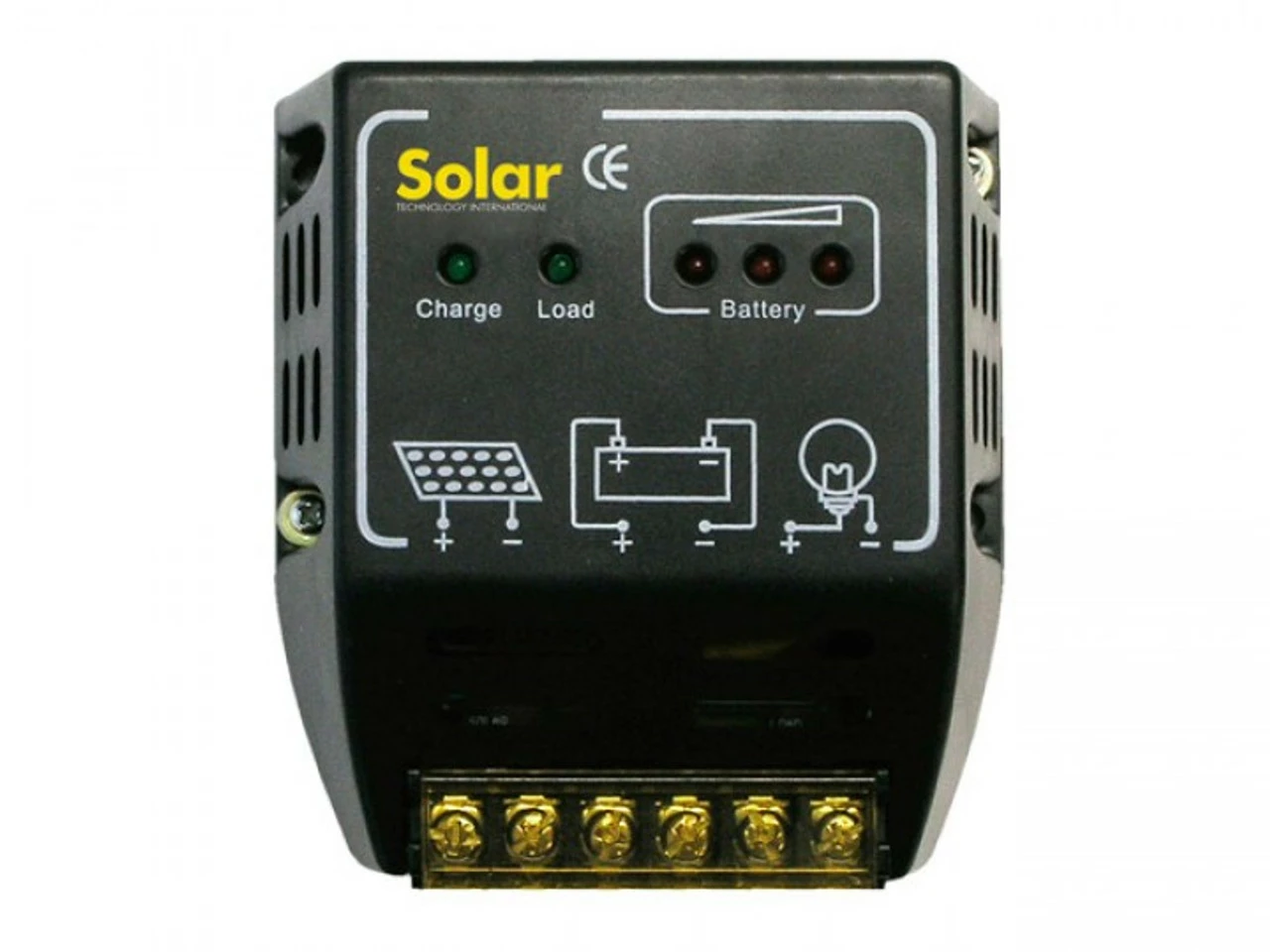

With an 8Ah Charge Controller included

The PV Logic 80w Kit also comes supplied with an 8Ah Charge Controller which protects the battery from being overcharged and also prevents reverse current drain.

PV Logic 80w Solar Panel Kit contents

• 1 x STP080 – 80w panel
• 1 x 5m Cable
• 1 x Fuse
• 1 x In Line Connector
• 2 x Crocodile Clips
• 6 x Ring Terminals
• 1 x Instruction Sheet
• 1 x STS01208 – 8Ah charge controller

Please note that there are no mounting brackets with this kit! Please choose which style of mounting bracket you would like from the related products list to the right of the page.

PV Logic 80w Solar Panel Kit features

• High efficiency crystalline cell for “all weather” charging
• Perfect for boat trips, extended caravan touring and for permanent fitting
• Water resistant, robust construction for outdoor use.

Technical Specifications:

Power:

80watts

Peak Output:

5.0A @ 17.2V

Approx. watt-hours/day:

480

Approx. amp-hours/day:

30

Dimensions:

670 x 815 x 35mm

Weight:

7.3kg
