120w PV Logic Long Flexible Solar Panel Kit For Boats, Motorhomes, And Caravans.

Ideal if not much roof space is available on the Caravan or Motorhome roof.

Perfect for people with higher power demands, but little space, the PV Logic 120w Solar Panel Kit provides maximum power from a minimal panel size making it ideal for motorhomes, boats and caravans with weight and space restrictions.

The PV logic 120w Solar Panel Kit is a robust and efficient power solution suitable for powering an assortment of consumption devices with the reliability of being water resistant and suitable for outdoor use.

Simply have 1 x 315mm wide panel on each edge of the roof.

Specifications

Power (Wp)	60watts
Nominal Voltage (Vmp)	18V DC
Nominal Current (Imp)	3.31A
Open Circuit Voltage (Voc)	21.78V
Short Circuit Current (Isc)	3.6A
Operating Temperature	-40 to + 80 Deg C
Max System Voltage	750V DC
Dimensions	1450x315x3mm (Junction box 10mm)
Weight	3Kg
Approx. watt-hours/day**	360W
Approx. amp-hours/day**	19.86A

** Based on 6 hours of average daily peak sunlight hours

Contents

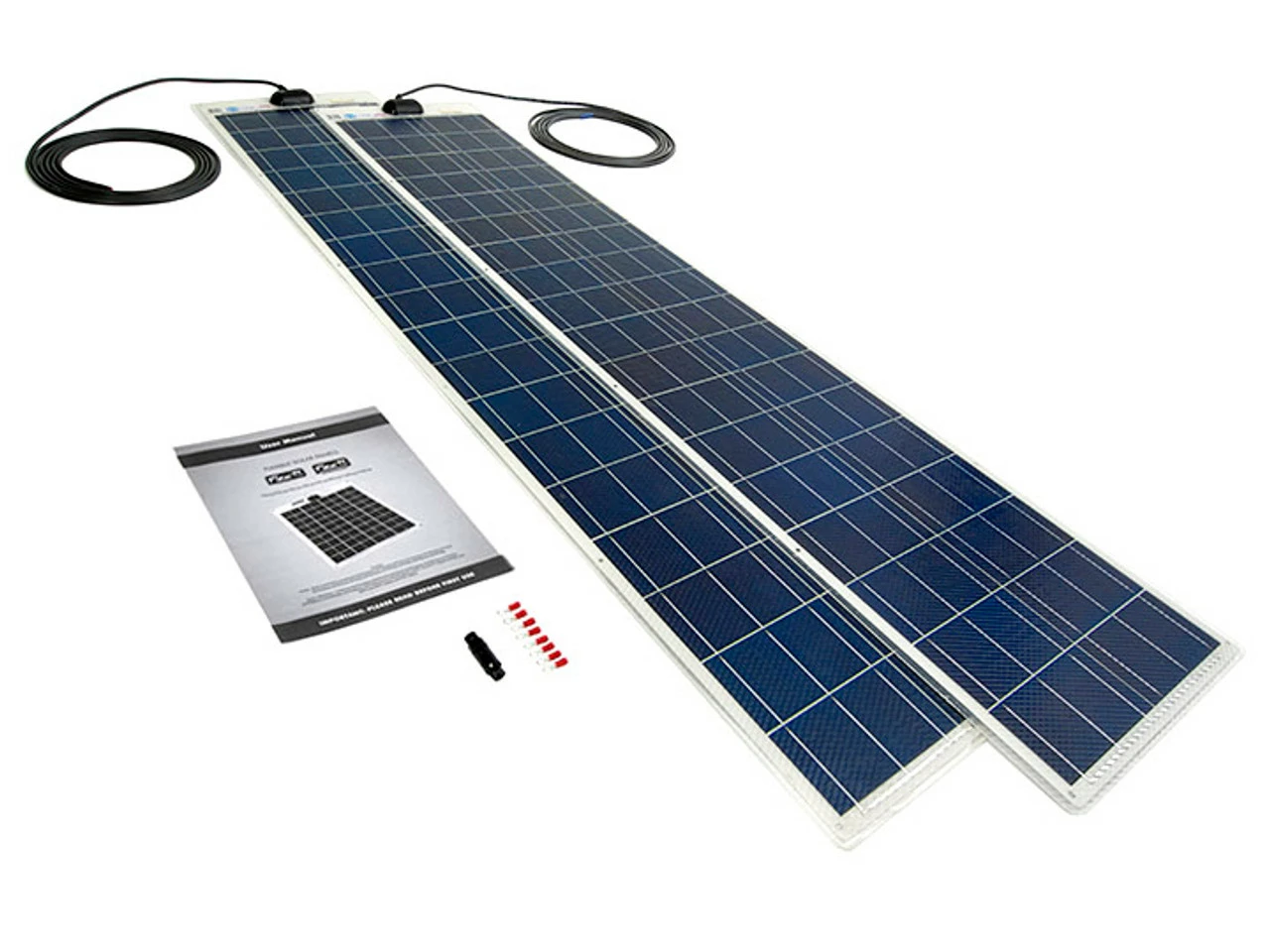

• 2 x STPVF060 – 60wp solar panel (walkable)

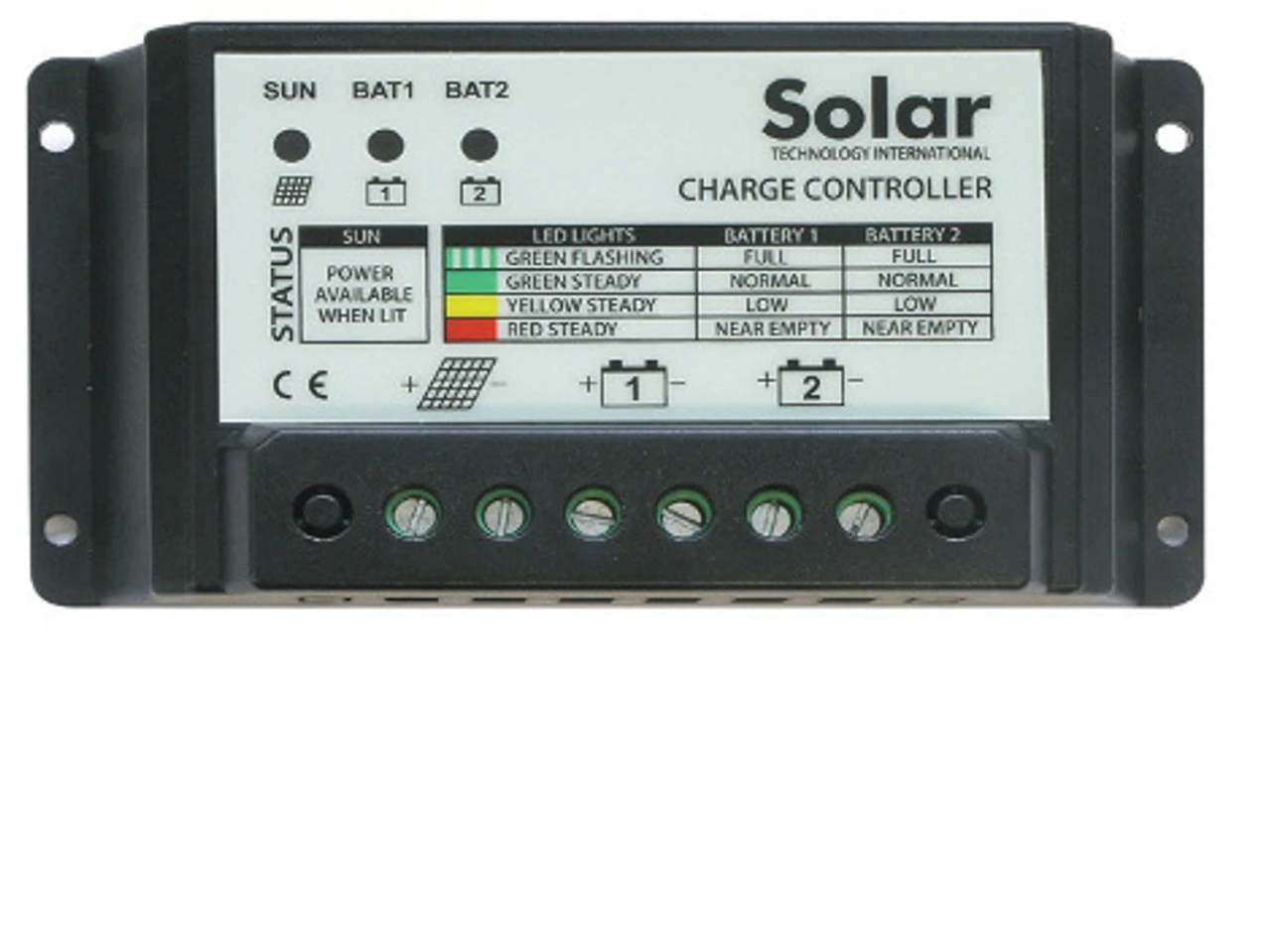

• 1 x 20 amp charge controller (regulator)
• 1 x 4m Cable (attached)
• 1 x Fuse
• 6 x Ring Terminals
• 1 x Instruction Sheet
